Waste Hard Plastic Lump HDPE Pipe Plastic Single shaft industry Shredder Machine

Name: Waste Hard Plastic Lump HDPE Pipe Plastic Single shaft industry Shredder Machine
Brand: STPLAS Plastic Shredder Machine
Price: 9 USD

Wholesale Waste Hard Plastic Lump HDPE Pipe Plastic Single shaft industry Shredder Machine from china suppliers

Brand Name : STPLAS Plastic Shredder Machine

Model Number : ST1800 Plastic Shredder Machine

Certification : CE Plastic Shredder Machine

Place of Origin : JIANGSU,CHINA

MOQ : 1 set

Price : 9,600-128,000USD/SET

Payment Terms : T/T

Supply Ability : 30sets/month

Delivery Time : 30-60days

Packaging Details : Plywood package suit for shipping

application : PVC ︳PE ︳PP ︳ABS

screen : Various screen sizes

Ram : the hydraulic ram pushes material against the roto

SHAFT DESIGN : single

Power : Power: 90-180kw

Usage : Usage: Waste Plastic Cusher

Keyword : One Shaft Plastic Shredder machine

Contact Now

Description:

Single shaft shredder uses the interaction of movable cutter heads and fixed knives to tear, cut and extrude the material into small size. It can be available for shredding a wide range of materials including plastic, wood, rubber, and paper etc. The cutter head is consists of basic shaft and pieces of quadrangle cutter. There are four edges which are easy to change. ‘V’ shaped rotary cutters are fixed on single shaft. The fixed cutter is mounted at an angle in adjacent to rotary cutter to achieve better cutting. The material is grabbed between 'V' shaped rotary cutters and fixed cutter shreds repeatedly. During the grinding process, the evenly cutting, saving of energy and reducing of noise are ensured by the installation of 'V' shape rotor knives. Also the knives are very easy to install and remove.

Specification

Model	ST1-600	ST1-800	ST1-1000	ST1-1200
Push Power(kw)	1.5	2.2	2.2	5.5
Mainmotor power (kw)	18.5	37	37	55
Rotary blade	28	38	48	58
Stationary blade	2	2	4	4
Shaft diameter(mm)	220	400	400	400
Rotate speed(r/min)	90	85	80	75

Waste Hard Plastic Lump HDPE Pipe Plastic Single shaft industry Shredder Machine

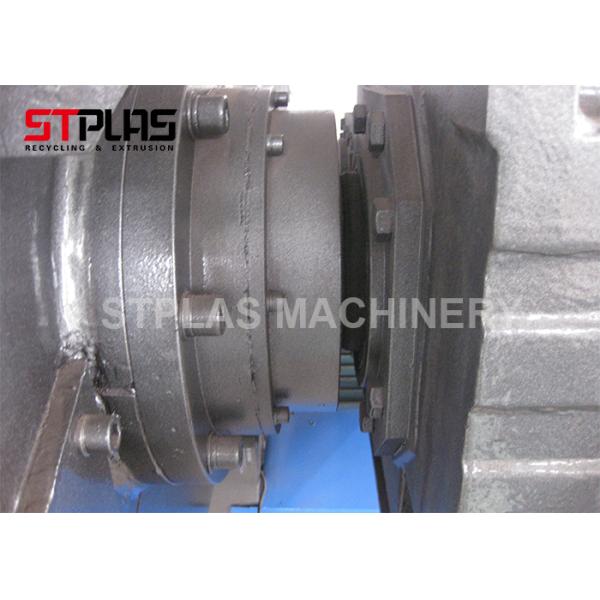

	ROTOR: Various rotor configurations available for processing a wide range of materials. Blades are made from hardened DC53 steel, the blades can be turned 4 times before changing.		GEARBOX: Water cooled gearbox guards against overloading. Hardened teeth on the reducer.
	CE CERTIFIED: Safety devices in line with European CE Certification		SHOCK ABSORBE: Absorbs vibrations caused by the shredding of the material. This protects the machine and its various parts from damage.
	RAM: The hydraulic ram pushes material against the roto		BEARING SEAT: Protective bearing covers to avoid foreign contamination entering the bearing housing. Grease points to release oil at intervals to increase
	SCREEN: Various screen sizes.		HYDRAULIC STATION: The ram pressure and timing can be adjusted to suit different materials. From WT40 series and above the machine can be fitted with wind cooled two-speed pump.

We also can supply double shaft shredder, tyre shredder, four shaft shredder, shredder-crusher one unit, plastic extruder, waste plastic granulation machine.pls kindly knoted.
